-Suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.
-Suitable for farm irrigation, pressure boosting, garden watering and other applications.
-Suitable for pumping clean water, or non-aggressive liquids only, without sand or other solid impurities.
|
||||
|
OPERATING LIMITS
-Total suction lift up to 6-8 mt. with foot valve
-Max .operating pressure : 8bar
-Max .ambient temperature :+40℃
-Max .liquid temperature :+90℃
-Max .altitude :+1000 mt.
|
MOTOR
-Insulation class :B
-Protection : IP44
-Speed of rotation :2850rpm
-Continuous duty : S1
|
|||
|

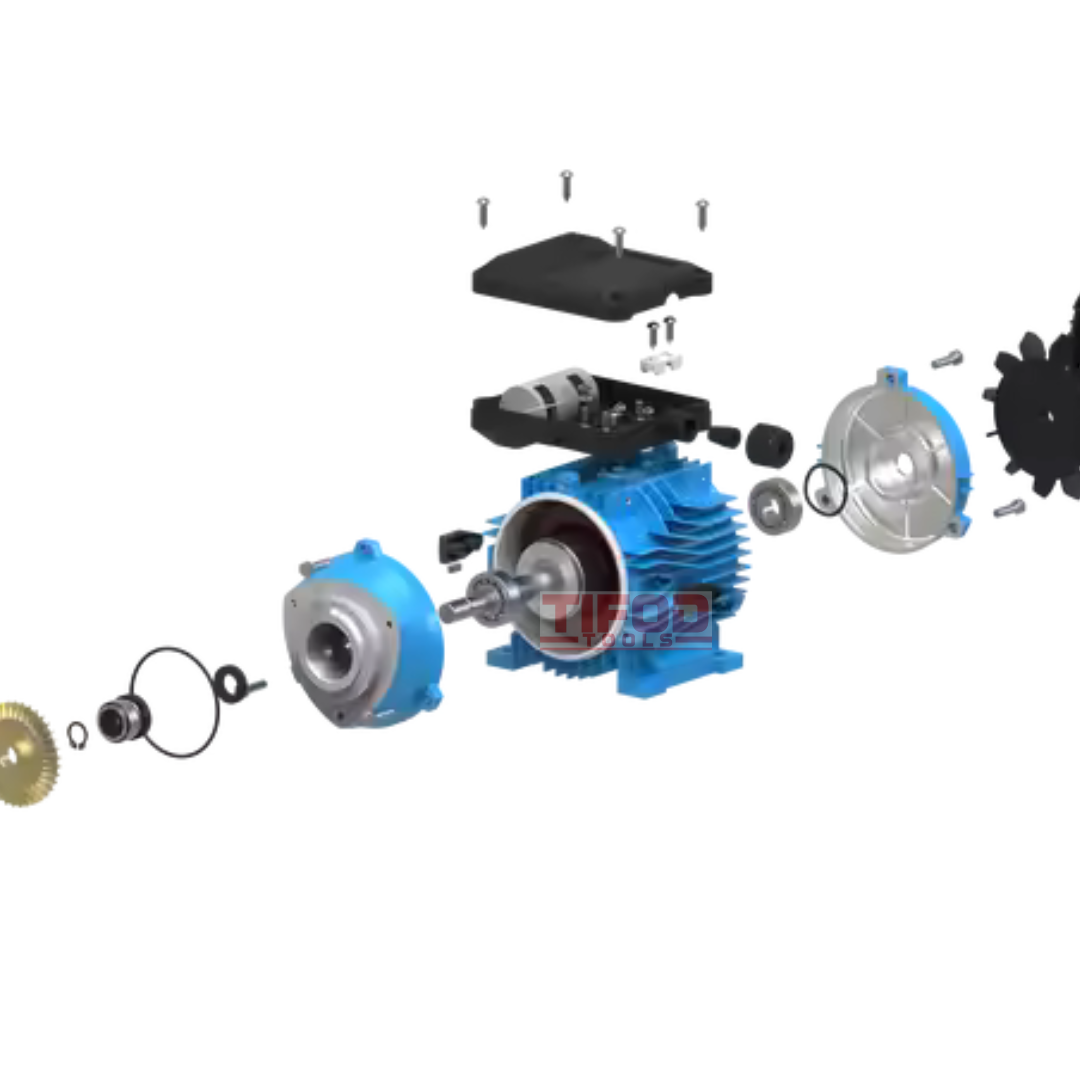

DESIGN FEATURES
-Pump body / motor bracket :cast iron
-Impeller :Brass
-Bearing :C&U
-100% copper winding
-Built-in thermal protector for single phase motor
-Motor shaft :AISI 304 welded shaft
-Mechanical seal :Carbon/Ceramic/NBR/SUS304
|
SPECIAL FEATURES ON REQUEST
-Anti-rust treatment for casting
-No block system
-AISI 1045 motor shaft
-Carbon/Sic/V mechanical seal
-Other voltage and frequency
-Insulation class :F
|
|||
